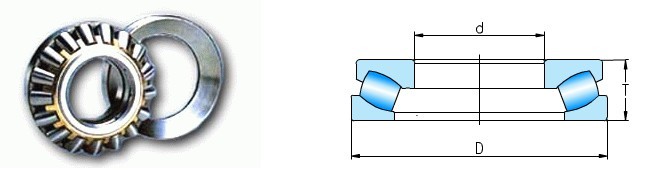

推力调心滚子轴承
| 轴承型号 | 基本尺寸 | 基本额定载荷 (kN) | 重量(kg) | |
| dxDxB | 动(Cr) | 静(Cor) | ||
| 29420/YA3 | 100x210x67 | 680 | 2000 | 10.5 |
| 29422/YA3 | 110x230x73 | 840 | 2500 | 13.3 |
| 29424 | 120x250x78 | 960 | 3000 | 19.4 |
| 29424/YA3 | 120x250x78 | 960 | 3000 | 19.5 |
| 29424J | 120x250x78 | 960 | 3000 | 19.5 |
| 29426/YA3 | 130x270x85 | 1050 | 3500 | 23 |
| 29326/YA3 | 130x225x58 | 610 | 2050 | 8.26 |
| 29328/YA3 | 140x240x60 | 675 | 2150 | 10.4 |
| 29428/YA3 | 140x280x85 | 1250 | 3850 | 22.7 |
| 29428J | 140x280x85 | 1250 | 3850 | 22.7 |
| 29330/YA3 | 150x250x60 | 750 | 2350 | 10.8 |
| 29430/YA3 | 150x300x90 | 1280 | 4250 | 27.3 |
| 29332/YA3 | 160x270x67 | 850 | 2800 | 14.3 |
| 29432/YA3 | 160x320x95 | 1500 | 5000 | 33.3 |
| 29334/YA3 | 170x280x67 | 880 | 2950 | 14.8 |
| 29434/YA3 | 170x340x103 | 1650 | 5500 | 40.7 |
| 29336/YA3 | 180x300x73 | 1000 | 3400 | 19.4 |
| 29436/YA3 | 180x360x109 | 1800 | 6000 | 42.3 |
| 29436J | 180x360x109 | 1800 | 6000 | 42.3 |
| 29338/YA3 | 190x320x78 | 1150 | 3850 | 23.1 |
| 29438/YA3 | 190x380x115 | 2000 | 6500 | 60.1 |
| 29340/YA3 | 200x340x85 | 1280 | 4500 | 28.5 |
| 29440/YA3 | 200x400x122 | 2200 | 7500 | 69.2 |
| 29244/YA3 | 220x300x48 | 484 | 910 | 7.92 |
| 29348/YA3 | 240x380x85 | 1350 | 5200 | 35.5 |
| 29448/YA3 | 240x440x122 | 2400 | 8150 | 74.5 |
| 29252M/YA3 | 260x360x60 | 798 | 1550 | 15.7 |
| 29352 | 260x420x95 | 1700 | 6500 | 48.5 |
| 29452 | 260x480x132 | 2650 | 9850 | 105 |
| 29256 | 280x380x60 | 870 | 4000 | 19.1 |
| 29356 | 280x440x95 | 1800 | 7000 | 49.1 |
| 29260 | 300x420x73 | 1050 | 5050 | 30 |
| 29360 | 300x480x109 | 2050 | 8000 | 74.2 |
| 29436 | 180×360×109 | 54 | ||
| 29460 | 300X540X145 | 3360 | 12000 | 142 |
| 29264 | 320x440x73 | 1150 | 5600 | 32.5 |
| 29464 | 320x580x155 | 3500 | 13500 | 115 |
| 29268/YA3 | 340x460x73 | 1250 | 5800 | 31.4 |
| 29468 | 340x620x170 | 4000 | 15500 | 218 |
| 29372/YA3 | 360x560x122 | 2550 | 10000 | 107 |
| 29472 | 360x640x170 | 4300 | 16800 | 228 |
| 29280 | 400x540x85 | 1520 | 7750 | 55.1 |
| 29380 | 400x620x132 | 3200 | 12500 | 150 |
| 29480 | 400x710x185 | 5350 | 20150 | 306 |
| 29284/YA3 | 420x580x95 | 2060 | 10000 | 78.9 |
| 29488EM/YA3 | 440x780x206 | 6200 | 24800 | 407 |
| 292/500/YA3 | 500x670x103 | 2500 | 11500 | 100 |
| 294/500 | 500x870x224 | 6930 | 27700 | 462 |
| 292/530 | 530x710x109 | 2720 | 14000 | 122 |
| 292/560 | 560x750x115 | 3100 | 16600 | 131 |
| 294/600 | 600x1030x258 | 9500 | 40500 | 896 |
| 292/630YA3 | 630x850x132 | 3880 | 20250 | 231 |
| 294/670 | 670x1150x290 | 11000 | 54500 | 1214 |
| 292/710/YA3 | 710x950x145 | 4060 | 22500 | 279 |
| 294/750YA3 | 750x1280x315 | 14850 | 63500 | 1723 |
| ... | ... | ... | ... | ... |
